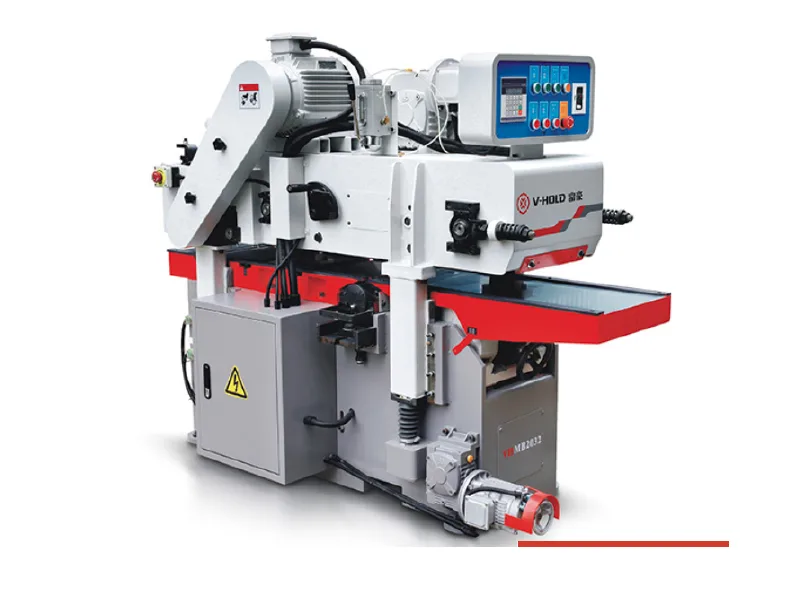

Double Side Planer (VTC-MB2063)
The product is supplied with an imported digital display device that can be operated directly from the control panel to the processing thickness with an accuracy of up to 0.05 mm; furthermore, the upper and lower planing motors are equipped with current meters to visually monitor whether they are overloaded during operation.
The automatic greasing device keeps the machine constantly lubricated during operation.
| Specification | Value |
|---|---|
| Model | VTC-MB2063 |
| Max. Working Width | 630 mm |
| Max. Working Thickness | 200 mm |
| Min. Working Thickness | 15 mm |
| Min. Working Length | 320 mm |
| Cutter Knives | 4 Pcs |
| Cutter Knife Dimensions | 635 × 30 × 6 mm |
| Feeding Speed | 5–20 m/min |
| Top Spindle Diameter | Ø110 mm |
| Top Spindle Rotation Speed | 5500 rpm |
| Top Spindle Motor Power | 11 kW |
| Bottom Spindle Motor Power | 7.5 kW |
| Total Power | 21.87 kW |
| Machine Dimensions (L × W × H) | 2700 × 1268 × 1680 mm |
| Feed Motor Power | 3 kW |
| Net Weight | 2420 kg |
Frequency-controlled inverters are used for all motors, ensuring ease of use, digital display controls, stable starting and acceleration moments, energy savings, and reduced wear on the mechanical transmission.
Central lubrication system
The configuration set for the central lubrication system simplifies maintenance and lubrication of the lifting system.
The feed device is equipped with a clutch-type mechanical system that prevents overloading and ensures safe operation.
Alarm detector: When an overload or slippage occurs in the feed chain, the alarm switch will trigger an alarm signal.
