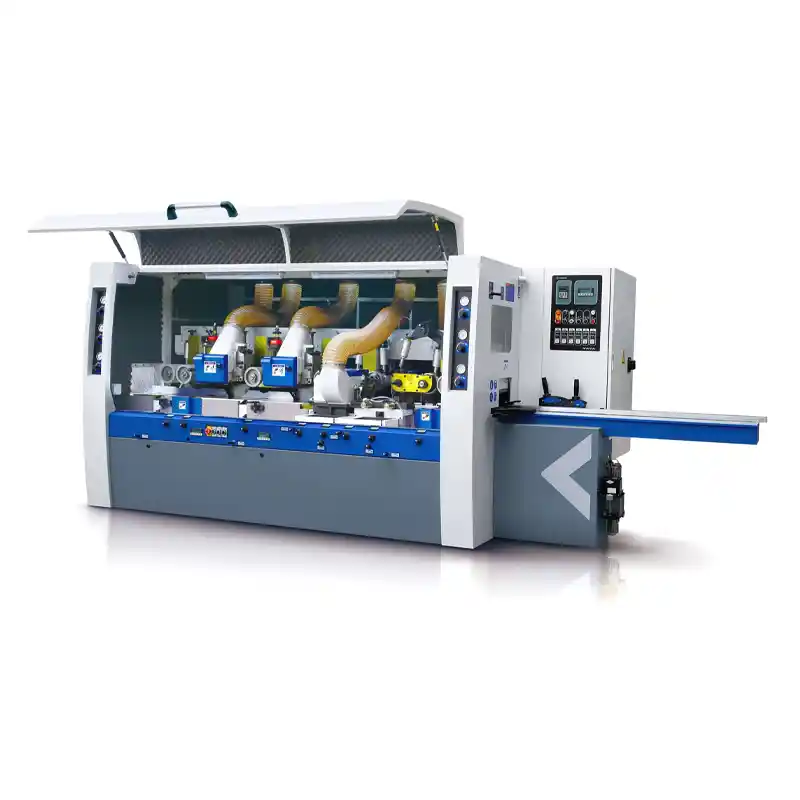

6-Spindle Four-Side Moulder (Dual Top Spindle)
V-HOLD
VTC-M623E
6-Spindle Four-Side Moulders are designed to machine all four sides of solid wood, MDF, and similar materials in a single pass, delivering high productivity and outstanding surface quality. Featuring powerful spindle configurations, a precision feeding system, and a robust machine frame, they provide efficient, reliable, and long-lasting performance for the production of doors, windows, furniture components, and decorative wood profiles.
| Specification | Value |
|---|---|
| Model | VTC-M623 |
| Working Width | 25–230 mm |
| Working Thickness | 8–160 mm |
| Infeed Table Length | 1970 mm |
| Feeding Speed | 6–36 m/min |
| Spindle Diameter | Ø40 mm |
| Spindle Rotation Speed | 7500 rpm |
| Air Pressure | 0.6 MPa |
| 1st Bottom Spindle Motor Power | 7.5 kW / 10 HP |
| 2nd Bottom Spindle Motor Power | 7.5 kW / 10 HP |
| 1st Right Vertical Spindle Motor Power | 7.5 kW / 10 HP |
| 1st Left Vertical Spindle Motor Power | 11 kW / 15 HP |
| 2nd Right Vertical Spindle Motor Power | 7.5 kW / 10 HP |
| 2nd Left Vertical Spindle Motor Power | 7.5 kW / 10 HP |
| Top Spindle Lifting Motor | 0.37 kW / 0.5 HP |
| Feed Beam Lifting Motor | 0.75 kW / 1 HP |
| Feed Motor Power | 5.5 kW / 7.5 HP |
| Total Power | 55.12 kW / 75 HP |
| 1st Bottom Spindle Cutter Diameter | Ø125 mm |
| Right Vertical Spindle Cutter Diameter | Ø125–Ø180 mm |
| Left Vertical Spindle Cutter Diameter | Ø125–Ø180 mm |
| 1st Top Spindle Cutter Diameter | Ø125–Ø180 mm |
| 2nd Top Spindle Cutter Diameter | Ø125–Ø180 mm |
| 2nd Bottom Spindle Cutter Diameter | Ø125–Ø200 mm |
| Feed Roller Diameter | Ø140 mm |
| Dust Outlet Diameter | Ø140 mm |
| Machine Dimensions (L × W × H) | 4400 × 1750 × 1940 mm |
| Weight | 4400 kg |
