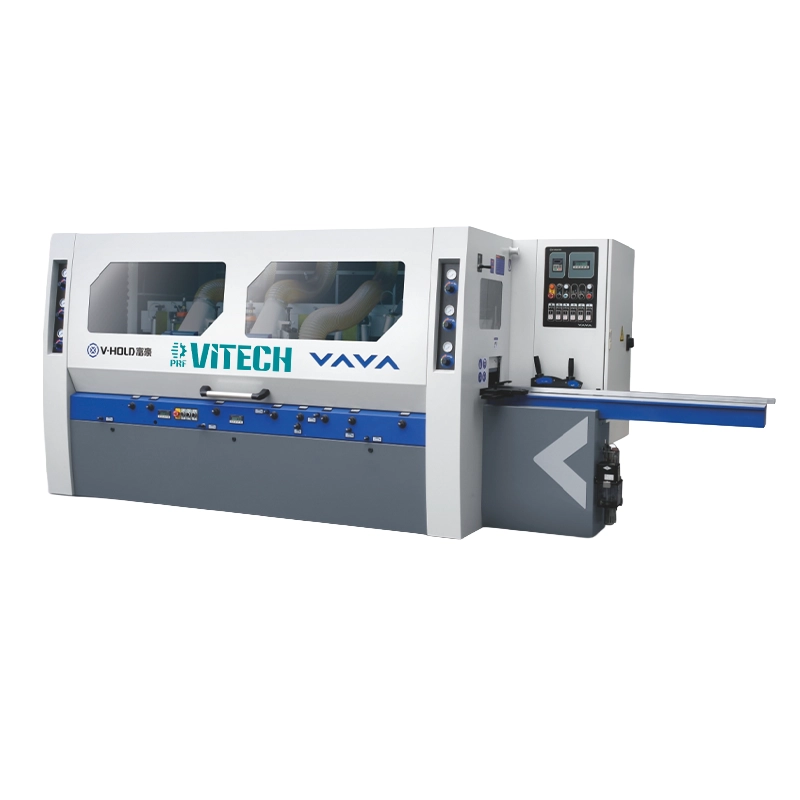

7-Spindle Four-Side Moulder

V-HOLD VTC-M723

The VTC-M723 is a high-performance 7-spindle four-side profile processing machine designed for solid wood and profile machining applications. With a working width of 25–210 mm, a spindle speed of 7500 rpm, and a feed speed of 6–36 m/min, it delivers precise, efficient, and reliable machining. Its universal spindle configuration, powerful motors, and heavy-duty construction ensure excellent surface quality and consistent performance in demanding production environments.

Get a Quote Quote Form

Specification	Value
Model	VTC-M723
Working Width	25–210 mm
Working Thickness	8–140 mm
Working Table Length	1970 mm
Feeding Speed	6–36 m/min
Main Spindle Diameter	Ø40 mm
Main Spindle Rotation Speed	7500 rpm
Air Pressure	0.6 MPa
1st Bottom Spindle Motor Power	5.5 kW / 7.5 HP
Right Vertical Spindle Motor Power	5.5 kW / 7.5 HP
Left Vertical Spindle Motor Power	5.5 kW / 7.5 HP
1st Top Spindle Motor Power	7.5 kW / 10 HP
2nd Bottom Spindle Motor Power	5.5 kW / 7.5 HP
Feed Beam Lifting Motor	0.75 kW / 1 HP
Feed Motor Power	5.5 kW / 7.5 HP
Universal Spindle Motor Power	2.2 kW × 2
Total Power	40.15 kW / 54.5 HP
1st Bottom Spindle Cutter Diameter	Ø125 mm
Right Vertical Spindle Cutter Diameter	Ø125–Ø180 mm
Left Vertical Spindle Cutter Diameter	Ø125–Ø180 mm
1st Top Spindle Cutter Diameter	Ø125–Ø180 mm
2nd Top Spindle Cutter Diameter	—
2nd Bottom Spindle Cutter Diameter	Ø125–Ø200 mm
Universal Spindle Cutter Diameter	Ø140–Ø180 mm
Feed Roller Diameter	Ø140 mm
Dust Outlet Diameter	Ø140 mm
Machine Dimensions (L × W × H)	4300 × 1780 × 1940 mm
Weight	3500 kg
