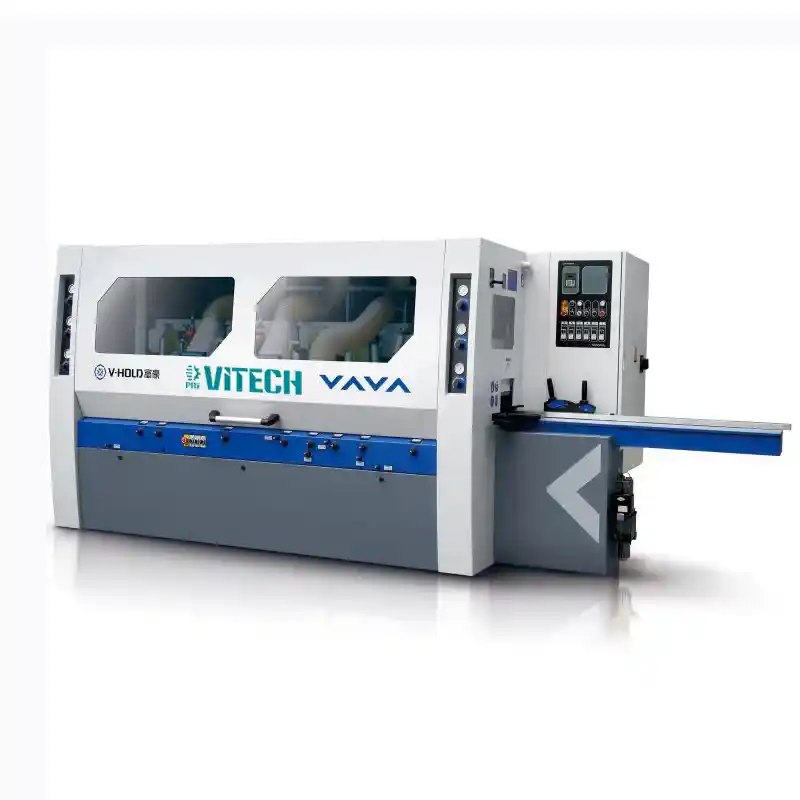

6-Spindle Four-Side Moulder (Standard)

V-HOLD VTC-M621

6-Spindle Four-Side Moulders are designed to machine all four sides of solid wood, MDF, and similar materials in a single pass, delivering high productivity and outstanding surface quality. Featuring powerful spindle configurations, a precision feeding system, and a robust machine frame, they provide efficient, reliable, and long-lasting performance for the production of doors, windows, furniture components, and decorative wood profiles.

Get a Quote Quote Form

Specification	Value
Model	VH-M621
Working Width	25–210 mm
Working Thickness	8–140 mm
Infeed Table Length	1970 mm
Feeding Speed	6–36 m/min
Main Spindle Diameter	Ø40 mm
Main Spindle Rotation Speed	6200 rpm
Air Pressure	0.6 MPa
1st Bottom Spindle Motor Power	5.5 kW / 7.5 HP
Right Vertical Spindle Motor Power	5.5 kW / 7.5 HP
Left Vertical Spindle Motor Power	5.5 kW / 7.5 HP
1st Top Spindle Motor Power	7.5 kW / 10 HP
2nd Top Spindle Motor Power	5.5 kW / 7.5 HP
2nd Bottom Spindle Motor Power	5.5 kW / 7.5 HP
Feed Beam Lifting Motor	0.75 kW / 1 HP
Feed Motor Power	4 kW / 5.5 HP
Total Power	41.25 kW / 56 HP
1st Bottom Spindle Cutter Diameter	Ø125 mm
Right Vertical Spindle Cutter Diameter	Ø125–Ø180 mm
Left Vertical Spindle Cutter Diameter	Ø125–Ø180 mm
1st Top Spindle Cutter Diameter	Ø125–Ø180 mm
2nd Top Spindle Cutter Diameter	Ø125–Ø180 mm
2nd Bottom Spindle Cutter Diameter	Ø125–Ø200 mm
Feed Roller Diameter	Ø140 mm
Dust Outlet Diameter	Ø140 mm
Machine Dimensions (L × W × H)	4400 × 1770 × 1880 mm
Weight	4400 kg

6-Spindle Four-Side Moulder (Standard)
