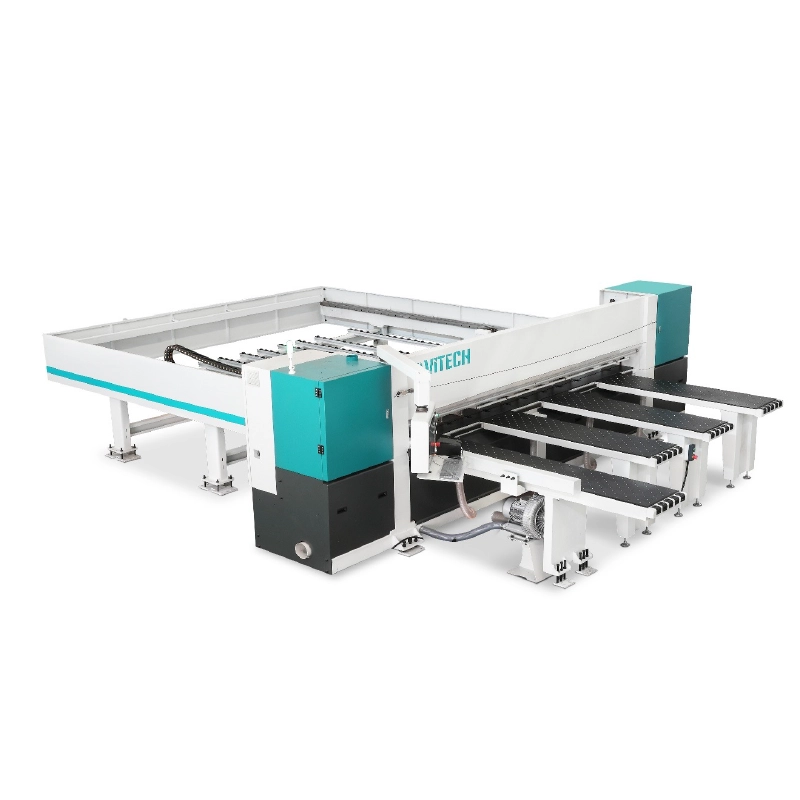

Front-Loading Panel Sizing Machine (4500mm)

SAMACH VTC-4500E

The VTC-4500E Panel Saw is a heavy-duty industrial cutting machine engineered for precision, speed, and high-capacity panel processing. With an extended 4550 mm cutting width and a 100 mm maximum cutting thickness, it is ideal for handling large MDF, particle board, plywood, and laminated panels. Powered by a 15 kW main saw motor, high-speed 4800 RPM main saw, and 6900 RPM scoring saw, the VTC-4500E ensures smooth, accurate, and chip-free cuts. Featuring 15 pneumatic clamps, 100 m/min automatic feeding, dual 3 kW high-pressure blowers, and optional optimization software with label printer, it is the perfect solution for demanding, high-volume manufacturing environments.

Get a Quote Quote Form

Specification	Value
Model	VTC-4500E
Cutting Width	4550 mm
Maximum Cutting Thickness	100 mm
Main Saw Blade Diameter	Ø355 mm
Main Saw Arbor Diameter	Ø80 mm
Main Saw Speed	4800 RPM
Scoring Saw Blade Diameter	Ø180 mm
Scoring Saw Arbor Diameter	Ø55 mm
Scoring Saw Speed	6900 RPM
Saw Carriage Forward Speed	100 m/min
Saw Carriage Return Speed	150 m/min
Main Saw Motor	15 kW
Scoring Saw Motor	2.2 kW
Saw Carriage Drive Motor	1.5 kW
Automatic Feeding Motor	2.0 kW
High-Pressure Blower Motor	3 kW × 2
Total Installed Power	23 kW
Automatic Feeding Speed	100 m/min
Air Pressure Requirement	5–7 kg/cm²
Working Table Height	950 mm
Machine Dimensions (L × W × H)	7100 × 7000 × 1800 mm
Number of Clamps	15
Optimization Software & Label Printer	Optional
